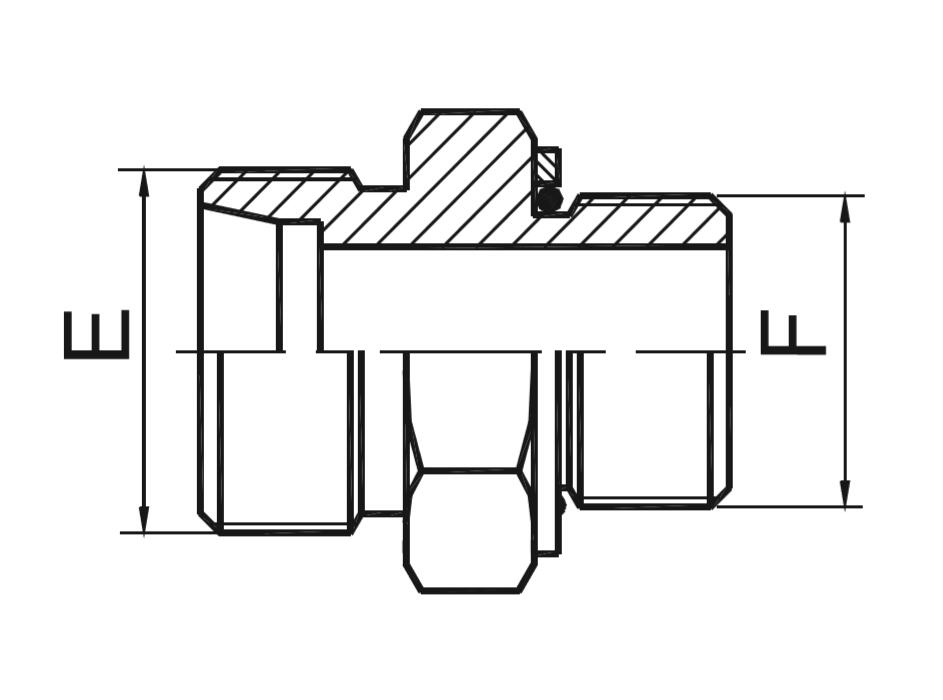

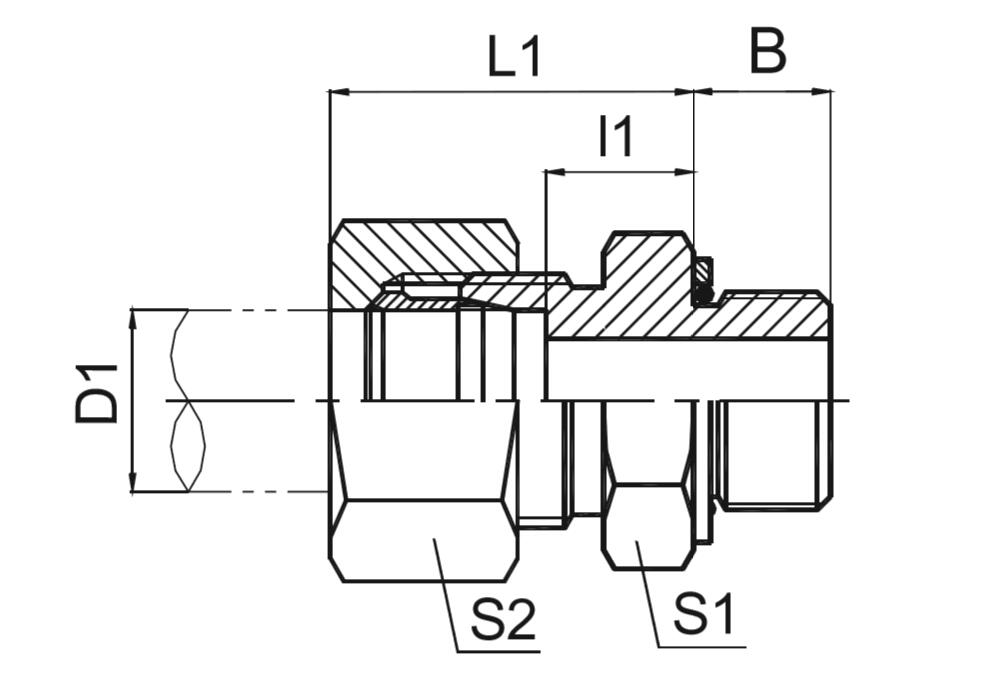

1CH/1DH 公制外螺纹柱端
| 系列 | 代号 PART NO. |
螺纹 THREAD | 管子外径 TUBE O.D | 尺寸 DIMENSIONS | 重量 克/件 |
工作压力 (bar) | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| E | F | D1 | D2 | L1 | L2 | L3 | L4 | S1 | S2 | ||||
|
L
|
1CH-12-10
|
M12X1.5
|
M10X1
|
06
|
14
|
24
|
8.5
|
8.5
|
23
|
14
|
14
|
15
|
500
|
|
1CH-14-12
|
M14X1.5
|
M12X1.5
|
08
|
14
|
28
|
10
|
11
|
25
|
17
|
17
|
23
|
500
|
|
|
1CH-16-14
|
M16X1.5
|
M14X1.5
|
10
|
19
|
29
|
11
|
11
|
26
|
19
|
19
|
28
|
500
|
|
|
1CH-16
|
M16X1.5
|
M16X1.5
|
10
|
22
|
31
|
12.5
|
11.5
|
27.5
|
22
|
22
|
40
|
420
|
|
|
1CH-18-16
|
M18X1.5
|
M16X1.5
|
12
|
22
|
31
|
12.5
|
11.5
|
27
|
22
|
22
|
42
|
400
|
|
|
1CH-18
|
M18X1.5
|
M18X1.5
|
12
|
24
|
33
|
13.5
|
12.5
|
28
|
24
|
22
|
51
|
400
|
|
|
1CH-22-18
|
M22X1.5
|
M18X1.5
|
15
|
24
|
33
|
13.5
|
12.5
|
29
|
24
|
27
|
56
|
400
|
|
|
1CH-22
|
M22X1.5
|
M22X1.5
|
15
|
27
|
34.5
|
14.5
|
13
|
30
|
27
|
27
|
74
|
400
|
|
|
1CH-26-22
|
M26X1.5
|
M22X1.5
|
18
|
27
|
35
|
14.5
|
13
|
31
|
27
|
32
|
80
|
400
|
|
|
1CH-26
|
M26X1.5
|
M26X1.5
|
18
|
31.9
|
38
|
14.5
|
16
|
31
|
32
|
32
|
108
|
400
|
|
|
1CH-30-26
|
M30X2
|
M26X1.5
|
22
|
31.9
|
40
|
16.5
|
16
|
33
|
32
|
36
|
107
|
250
|
|
|
1CH-30-27
|
M30X2
|
M27X2
|
22
|
32
|
40
|
16.5
|
16
|
33
|
32
|
36
|
104
|
250
|
|
|
1CH-36-33
|
M36X2
|
M33X2
|
28
|
41
|
41
|
17.5
|
16
|
34
|
41
|
41
|
171
|
250
|
|
|
1CH-45-42
|
M45X2
|
M42X2
|
35
|
50
|
44
|
17.5
|
16
|
39
|
50
|
50
|
278
|
250
|
|
|
1CH-52-48
|
M52X2
|
M48X2
|
42
|
55
|
47.5
|
19
|
17.5
|
42
|
55
|
60
|
340
|
250
|
|
|
S
|
1DH-14-12
|
M14X1.5
|
M12X1.5
|
06
|
17
|
31
|
13
|
11
|
28
|
17
|
17
|
29
|
800
|
|
1DH-16-14
|
M16X1.5
|
M14X1.5
|
08
|
19
|
33
|
15
|
11
|
30
|
19
|
19
|
37
|
800
|
|
|
1DH-16
|
M16X1.5
|
M16X1.5
|
08
|
22
|
35
|
15
|
12.5
|
31
|
22
|
19
|
50
|
800
|
|
|
1DH-18-16
|
M18X1.5
|
M16X1.5
|
10
|
22
|
35
|
15
|
12.5
|
31
|
22
|
22
|
55
|
800
|
|
|
1DH-18
|
M18X1.5
|
M18X1.5
|
10
|
24
|
38.5
|
17
|
14
|
33
|
24
|
22
|
71
|
630
|
|
|
1DH-20-18
|
M20X1.5
|
M18X1.5
|
12
|
24
|
38.5
|
17
|
14
|
33
|
24
|
24
|
73
|
630
|
|
|
1DH-24-22
|
M24X1.5
|
M22X1.5
|
16
|
27
|
42
|
18.5
|
15
|
37
|
27
|
30
|
102
|
630
|
|
|
1DH-30-27
|
M30X2
|
M27X2
|
20
|
32
|
49.5
|
20.5
|
18.5
|
42
|
32
|
36
|
169
|
420
|
|
|
1DH-36-33
|
M36X2
|
M33X2
|
25
|
41
|
53.5
|
23
|
18.5
|
47
|
41
|
46
|
274
|
420
|
|
|
1DH-42
|
M42X2
|
M42X2
|
30
|
50
|
56
|
23
|
19
|
50
|
50
|
50
|
412
|
420
|
|
|
1DH-52-48
|
M52X2
|
M52X2
|
38
|
55
|
63.5
|
26
|
21.5
|
57
|
55
|
60
|
580
|
420
|
|
注：如需带卡套及卡套螺母整套订货，则请在代号后加“RN”，如1CH-30-27/RN;需配挡圈请在代号后加“DQ”，如1CH-30-27DQ。
Note: In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part NO,for example 1CH-30-27RN；with retainer ring please insert suffix"DQ"after our part NO,for example 1CH-30-27DQ.
