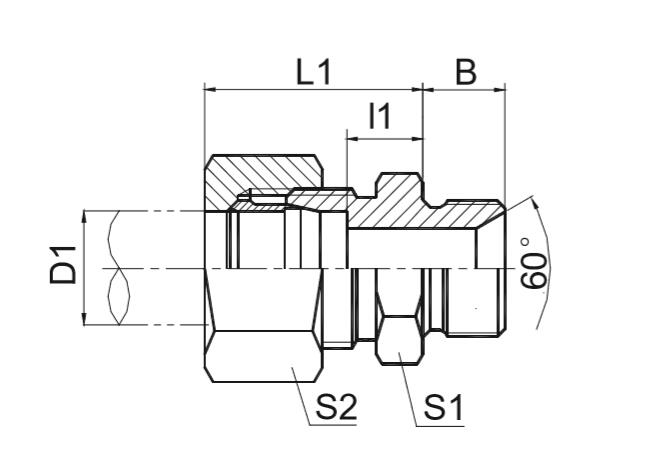

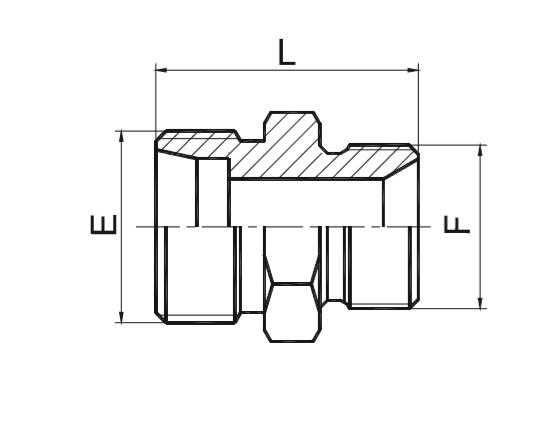

1CB/1DB英管螺纹胶垫密封
| 系列 | 代号 PART NO. |
螺纹 THREAD | 管子外径 TUBE O.D | 尺寸 DIMENSIONS | 重量 克/件 |
工作压力 (bar) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| E | F | D1 | L1 | L2 | L3 | L4 | S1 | S2 | ||||
|
L
|
1CB-12-02
|
M12X1.5
|
G1/8＂X28
|
06
|
25
|
10
|
8
|
23
|
14
|
14
|
12
|
500
|
|
1CB-12-04
|
M12X1.5
|
G1/4＂X19
|
06
|
30
|
12
|
11
|
24
|
19
|
14
|
28
|
500
|
|
|
1CB-14-02
|
M14X1.5
|
G1/8＂X28
|
08
|
25
|
10
|
8
|
23
|
14
|
17
|
16
|
500
|
|
|
1CB-14-04
|
M14X1.5
|
G1/4＂X19
|
08
|
30
|
12
|
11
|
24
|
19
|
17
|
27
|
500
|
|
|
1CB-14-06
|
M14X1.5
|
G3/8＂X19
|
08
|
32.5
|
13.5
|
12
|
24
|
22
|
17
|
44
|
420
|
|
|
1CB-16-04
|
M16X1.5
|
G1/4＂X19
|
10
|
30
|
12
|
11
|
25
|
19
|
19
|
29
|
500
|
|
|
1CB-16-06
|
M16X1.5
|
G3/8＂X19
|
10
|
32.5
|
13.5
|
12
|
25
|
22
|
19
|
42
|
420
|
|
|
1CB-16-08
|
M16X1.5
|
G1/2＂X14
|
10
|
37
|
16
|
14
|
26
|
27
|
19
|
70
|
400
|
|
|
1CB-18-04
|
M18X1.5
|
G1/4＂X19
|
12
|
30
|
12
|
11
|
25
|
19
|
22
|
30
|
400
|
|
|
1CB-18-06
|
M18X1.5
|
G3/8＂X19
|
12
|
32.5
|
13.5
|
12
|
25
|
22
|
22
|
40
|
420
|
|
|
1CB-18-08
|
M18X1.5
|
G1/2＂X14
|
12
|
37
|
16
|
14
|
26
|
27
|
22
|
66
|
400
|
|
|
1CB-18-12
|
M18X1.5
|
G3/4＂X14
|
12
|
41.5
|
18.5
|
16
|
26
|
32
|
22
|
117
|
250
|
|
|
1CB-22-06
|
M22X1.5
|
G3/8＂X19
|
15
|
33
|
13.5
|
12
|
26
|
24
|
27
|
53
|
400
|
|
|
1CB-22-08
|
M22X1.5
|
G1/2＂X14
|
15
|
37.5
|
16
|
14
|
27
|
27
|
27
|
71
|
400
|
|
|
1CB-26-08
|
M26X1.5
|
G1/2＂X14
|
18
|
37.5
|
16
|
14
|
28
|
27
|
32
|
70
|
400
|
|
|
1CB-26-12
|
M26X1.5
|
G3/4＂X14
|
18
|
42
|
18.5
|
16
|
28
|
32
|
32
|
118
|
250
|
|
|
1CB-36-16
|
M36X2
|
G1＂X11
|
28
|
47
|
20.5
|
19
|
31
|
41
|
41
|
168
|
250
|
|
|
1CB-45-20
|
M45X2
|
G1.1/4＂X11
|
35
|
51
|
20.5
|
20
|
37
|
50
|
50
|
270
|
250
|
|
|
1CB-52-24
|
M52X2
|
G1.1/2＂X11
|
42
|
56
|
23
|
22
|
39
|
55
|
60
|
340
|
250
|
|
|
S
|
1DB-14-04
|
M14X1.5
|
G1/4＂X19
|
06
|
30
|
12
|
11
|
28
|
19
|
17
|
35
|
800
|
|
1DB-16-04
|
M16X1.5
|
G1/4＂X19
|
08
|
30
|
12
|
11
|
28
|
19
|
19
|
40
|
800
|
|
|
1DB-16-06
|
M16X1.5
|
G3/8＂X19
|
08
|
30.5
|
13.5
|
12
|
32
|
22
|
19
|
56
|
800
|
|
|
1DB-18-04
|
M18X1.5
|
G1/4＂X19
|
10
|
30.5
|
12
|
11
|
29
|
19
|
22
|
41
|
400
|
|
|
1DB-18-06
|
M18X1.5
|
G3/8＂X19
|
10
|
33
|
13.5
|
12
|
31
|
22
|
22
|
54
|
800
|
|
|
1DB-18-08
|
M18X1.5
|
G1/2＂X14
|
10
|
37.5
|
16
|
14
|
31
|
27
|
22
|
95
|
630
|
|
|
1DB-20-04
|
M20X1.5
|
G1/4＂X19
|
12
|
30.5
|
12
|
11
|
31
|
22
|
24
|
60
|
630
|
|
|
1DB-20-06
|
M20X1.5
|
G3/8＂X19
|
12
|
33
|
13.5
|
12
|
31
|
22
|
24
|
62
|
630
|
|
|
1DB-20-08
|
M20X1.5
|
G1/2＂X14
|
12
|
37.5
|
16
|
14
|
31
|
27
|
24
|
98
|
630
|
|
|
1DB-22-08
|
M22X1.5
|
G1/2＂X14
|
14
|
38
|
16
|
14
|
34
|
27
|
27
|
95
|
630
|
|
|
1DB-24-06
|
M24X1.5
|
G3/8＂X19
|
16
|
34
|
13.5
|
12
|
34
|
27
|
30
|
82
|
630
|
|
|
1DB-24-08
|
M24X1.5
|
G1/2＂X14
|
16
|
38.5
|
16
|
14
|
34
|
27
|
30
|
90
|
630
|
|
|
1DB-24-12
|
M24X1.5
|
G3/4＂X14
|
16
|
43
|
18.5
|
16
|
36
|
32
|
30
|
150
|
420
|
|
|
1DB-30-12
|
M30X2
|
G3/4＂X14
|
20
|
45
|
18.5
|
16
|
39
|
32
|
36
|
147
|
420
|
|
|
1DB-36-08
|
M36X2
|
G1/2＂X14
|
25
|
42
|
16
|
14
|
43
|
41
|
46
|
226
|
420
|
|
|
1DB-36-12
|
M36X2
|
G3/4＂X14
|
25
|
46.5
|
18.5
|
16
|
43
|
41
|
46
|
264
|
420
|
|
|
1DB-36-16
|
M36X2
|
G1＂X11
|
25
|
51.5
|
20.5
|
19
|
44
|
41
|
46
|
400
|
420
|
|
|
1DB-42-20
|
M42X2
|
G1.1/4＂X11
|
30
|
54
|
20.5
|
20
|
48
|
50
|
50
|
415
|
420
|
|
|
1DB-52-24
|
M52X2
|
G1.1/2＂X11
|
38
|
61
|
23
|
22
|
54
|
55
|
60
|
560
|
420
|
|
注：如需带卡套及卡套螺母整套订货，则请在代号后加“RN”，如1CB-30-12/RN。
Note：In case if you are interested to order the adapter in complete set with cutting ring and nut，it is necessary to insert suffix “RN”after our part NO，for example 1CB-30-12/RN.
