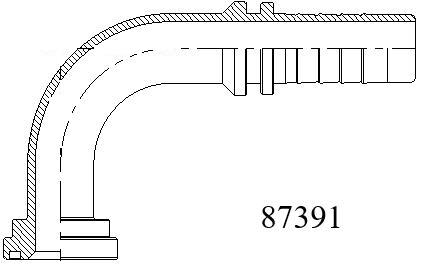

90 ° SAE 法兰3000PSI
90 ° SAE FLANGE3000PSI
ISO12151-3------SAE J516
| 代号 PART NO. | 法兰型号 FLANGE SIZE | 软管HOSE BORE | 尺寸DIMENSIONS | |||||
| 公称内径DN | 标号DASH | A | C | D | H | L | ||
| 87391-08-08 | 1/2" | 12 | 08 | 41 | 30.2 | 24 | 47 | 6.73 |
| 87391-12-08 | 3/4" | 12 | 08 | 41 | 38.1 | 31.7 | 48 | 6.73 |
| 87391-12-10 | 3/4" | 16 | 10 | 56.5 | 38.1 | 31.7 | 52.5 | 6.73 |
| 87391-12-12 | 3/4" | 20 | 12 | 66.2 | 38.1 | 31.7 | 62 | 6.73 |
| 87391-12-12(H100) | 3/4" | 20 | 12 | 65.5 | 38.1 | 31.7 | 100 | 6.73 |
| 87391-12-12(H127) | 3/4" | 20 | 12 | 65.5 | 38.1 | 31.7 | 127 | 6.73 |
| 87391-12-12(H150) | 3/4" | 20 | 12 | 65.5 | 38.1 | 31.7 | 150 | 6.73 |
| 87391-12-16 | 3/4" | 25 | 16 | 76.7 | 38.1 | 31.7 | 67.5 | 6.73 |
| 87391-16-12 | 1" | 20 | 12 | 66.2 | 44.4 | 38 | 62 | 8 |
| 87391-16-16 | 1" | 25 | 16 | 78 | 44.4 | 38 | 67.5 | 8 |
| 87391-16-16(H100) | 1" | 25 | 16 | 76.7 | 44.4 | 38 | 100 | 8 |
| 87391-16-16(H127) | 1" | 25 | 16 | 76.7 | 44.4 | 38 | 127 | 8 |
| 87391-16-16(H150) | 1" | 25 | 16 | 76.7 | 44.4 | 38 | 150 | 8 |
| 87391-16-20 | 1" | 32 | 20 | 91.5 | 44.4 | 38 | 78.5 | 8 |
| 87391-20-16 | 1.1/4" | 25 | 16 | 78 | 50.8 | 43 | 67.5 | 8 |
| 87391-20-20 | 1.1/4" | 32 | 20 | 91.5 | 50.8 | 43 | 78.5 | 8 |
| 87391-20-20(H100) | 1.1/4" | 32 | 20 | 91.5 | 50.8 | 43 | 100 | 8 |
| 87391-20-20(H127) | 1.1/4" | 32 | 20 | 91.5 | 50.8 | 43 | 127 | 8 |
| 87391-20-20(H150) | 1.1/4" | 32 | 20 | 91.5 | 50.8 | 43 | 150 | 8 |
| 87391-20-24 | 1.1/4" | 40 | 24 | 108.5 | 50.8 | 43 | 78.5 | 8 |
| 87391-24-20 | 1.1/2" | 32 | 20 | 91.5 | 60.3 | 50 | 80.5 | 8 |
| 87391-24-24 | 1.1/2" | 40 | 24 | 109.4 | 60.3 | 50 | 94 | 8 |
| 87391-24-24(H127) | 1.1/2" | 40 | 24 | 109.4 | 60.3 | 50 | 127 | 8 |
| 87391-32-24 | 2" | 40 | 24 | 109.4 | 71.4 | 62 | 94 | 9.53 |
| 87391-32-32 | 2" | 50 | 32 | 131.8 | 71.4 | 62 | 114.3 | 9.53 |
| 87391-40-32 | 2.1/2" | 50 | 32 | 131.8 | 84.1 | 74.4 | 114.3 | 9.53 |
| 注：1.表中代号用于编织软管 2 如需用于缠绕软管代号改为87391-xx-xx. | ||||||||
