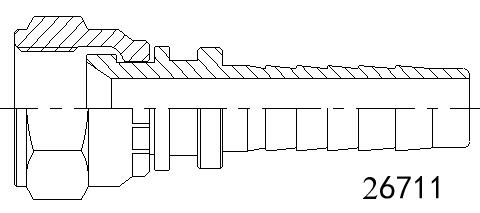

美制JIC内螺纹74°内锥面
JIC FEMALE 74°CONE SEAT
SAE J514
| 代号 | 管子外径D | 软管HOSE BORE | 尺寸 DIMENSIONS | |||
| PART NO. | TUBE O.D. | 公称内径DN | 标号DASH | A | C | S1 |
| 26711-04-03 | 7/16"X20 | 5 | 03 | 14.5 | 9 | 15 |
| 26711-04-04 | 7/16"X20 | 6 | 04 | 15 | 9 | 15 |
| 26711-05-04 | 1/2"X20 | 6 | 04 | 15.5 | 9.5 | 17 |
| 26/11-05-05 | 1/2"x20 | 8 | 05 | 15 5 | 95 | 17 |
| 26711-05-06 | 1/2"X20 | 10 | 06 | 15.5 | 9.5 | 17 |
| 26711-06-04 | 9/16"X18 | 6 | 04 | 15 5 | 10.5 | 19 |
| 26711-06-05 | 9/16"X18 | 8 | 05 | 15.5 | 10.5 | 19 |
| 26711-06-06 | 9/16"X18 | 10 | 06 | 15.5 | 10 5 | 19 |
| 26711-06-08 | 9/16"X18 | 12 | 08 | 16 | 10.5 | 19 |
| 26711-08-06 | 3/4“x16 | 10 | 06 | 17.5 | 11 | 24 |
| 26711-08-08 | 3/4"X16 | 12 | 08 | 18 | 11 | 24 |
| 26711-08-10 | 3/4"X16 | 16 | 10 | 19 5 | 11 | 24 |
| 26711-10-08 | 7/8"X14 | 12 | 08 | 18.5 | 13 | 27 |
| 26711-10-10 | 7/8"X14 | 16 | 10 | 20 | 13 | 27 |
| 26711-10-12 | 7/8"X14 | 20 | 12 | 20 | 13 | 27 |
| 26711-12-08T | 1.1/16”X12 | 12 | 08 | 19 | 15 | 32 |
| 26711-12-10 | 1.1/16”X12 | 16 | 10 | 21.5 | 15 | 32 |
| 26711-12-12 | 1.1/16”X12 | 20 | 12 | 21.5 | 15 | 32 |
| 26711-12-16 | 1.1/16”X12 | 25 | 16 | 23 | 15 | 32 |
| 26711-14-12 | 1.3/16"X12 | 20 | 12 | 21.5 | 15 | 36 |
| 26711-16-12T | 1.5/16"X12 | 20 | 12 | 18.5 | 16 | 41 |
| 26711-16-16 | 1.5/16HX12 | 25 | 16 | 23 | 16 | 41 |
| 26711-16-20 | 1.5/16"X12 | 32 | 20 | 24 | 16 | 41 |
| 26711-20-16T | 1.5/8-X12 | 25 | 16 | 23 | 17 | 50 |
| 26711-20-20W | 1.5/8.X12 | 32 | 20 | 26 | 17 | 50 |
| 26711-24-20W | 1 /8.X12 | 32 | 20 | 26.5 | 20 | 55 |
| 26711-24-24W | 1.7/8"X12 | 40 | 24 | 26.5 | 20 | 55 |
| 26711-32-24T | 2.1/2-X12 | 40 | 24 | 27 | 23 5 | 75 |
| 26711-32-32T | 2.1/2-X12 | 50 | 32 | 27 | 23.5 | 75 |
| 注：1.表中代号用于编织软管 2 如需用于缠绕软管代号改为26712-xx-xx. | ||||||
